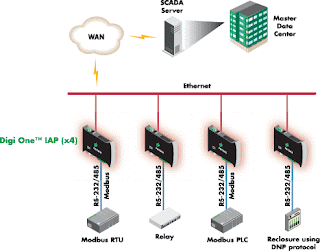

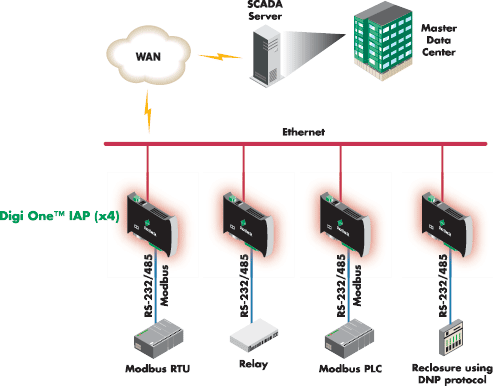

Equipment and gadgets like card visitors, PLC's, energy measures and information purchase segments assistance RS-232 and RS-485 interaction. These gadgets can be used with pc systems, remotes or PLC's for reasoning and processing programs. RS-232 and RS-485 Sequential System Hosts provide the versatility and comfort of Online allowing RS-232 and RS-485 gadgets. Online allowing allows you to hook up with serial gadgets from distant places or over Ethernet systems. Most RS-232 and RS-485 gadgets can interface with Windows centered information purchase application through Exclusive COM slots. Establishing up serial to Ethernet device servers is simple and can be done in less than five moments. First you energy up it and then you set the IP deal with. Then you map the virtual interaction slots. After you do that the serial gadgets can be used with your pc in the same way a conventional interaction slot, like your USB slot for example.
Here are 5 Actions for System Enabling Sequential Devices:
Power up the serial device hosting server either with the appropriate DC current or with a Control over Ethernet Change if it hosting server can handle PoE. TDS-715 for example can be operated over a 12 - 48VDC port with FRA05-S12-SU or it can be operated by a Control over Ethernet switch like NS-205PSE-24. You would energy the PoE switch with a 10 - 30 VDC energy like DIN-KA52F.
Connect the RS-232 or RS-485 device hosting server to your network via Ethernet switch like NS-205 or a hub if you are not already linked with a energy over Ethernet switch. After you are linked you will need to set up your serial to device hosting server with a suitable IP deal with, subnet cover up and entrance. You can get the network configurations from your System Manager.
Install a configurations application on your PC like VxComm which allows you to set the IP deal with and map the Exclusive COM slots of your serial to Ethernet device hosting server.
Search for the serial to Ethernet device hosting server with the configurations application. Dual simply select the came back device with your pc mouse. Feedback the preferred Ethernet configurations like IP deal with, subnet cover up and entrance. Click OK to preserve the configurations.
Configure the Exclusive COM Ports by hitting the "Search Servers" option. Click on your came back serial device hosting server in the record. Click "Add Server" and determine a COM slot variety, then simply click OK. This will be the virtual COM slot you will use when you want to interface with your serial device through your application over the Ethernet / Online network. Click "Tools," "Restart Car owner," and then simply select the "Restart Driver" option to preserve the configurations.
